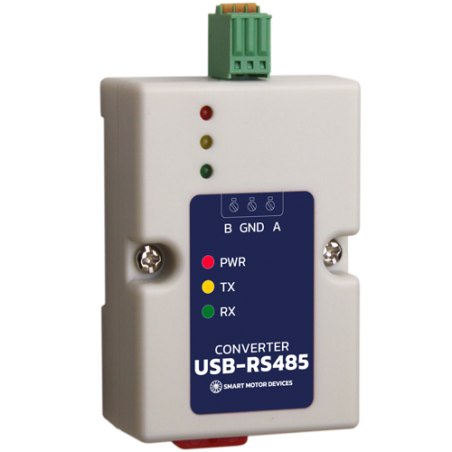

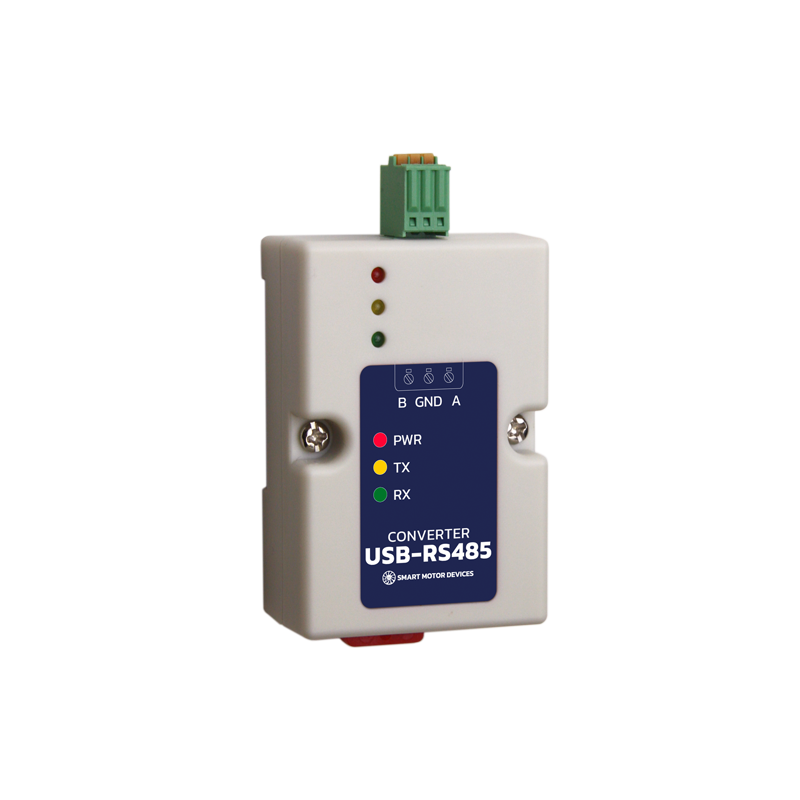

Converter USB-RS485

The converter provides stable communication, features galvanic isolation between interfaces, and protection against static electricity. The plastic housing of the converter can be mounted on a standard DIN rail. The device is powered from the USB port; no external power supply is required. The converter has a built-in 120 Ohm termination resistor, which can be disabled if necessary.

Technical specifications

- USB connector – Type-C
- Chip – CH340
- Maximum data transfer rate – 2 Mbit/s
- Automatic direction detection for RS485 data transmission
- Galvanic isolation between interfaces
- 120 Ohm termination resistor (disconnectable)
