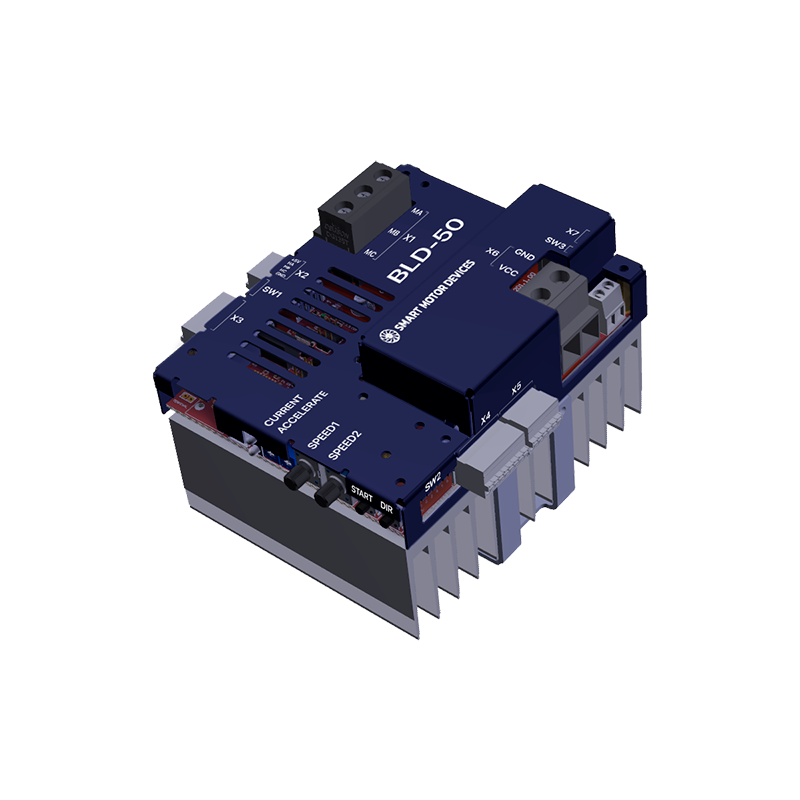

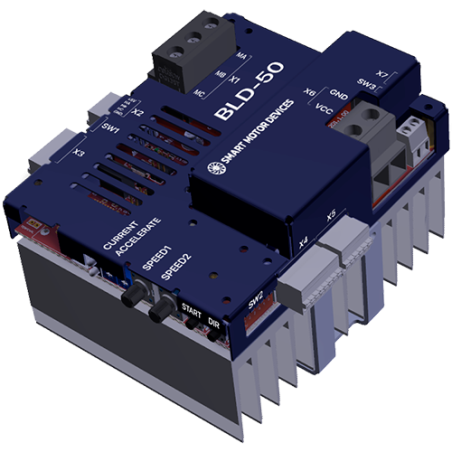

Buy BLD-50 - BLDC motor speed controller for medium and big size motor
Brushless DC motor controller BLD-50
search
  • Brushless DC motor controller BLD-50

BLD-50 - high power BLDC motor controller

€174.60
Tax excluded

BLD-50 is a controller for high power DC brushless motors with Hall sensors.

See detailed information on BLD-50 at our main web-site

20 Items
Quantity

The controller BLD-50 is designed to control 3-phase brushless motors with Hall sensors. Maximum current of up to 50 A is suitable for medium and big size motors.

The controller provides current limiting function to prevent motor overload and damage. Four-quadrant phase control allows stabilizing the motor speed for any combination of load and motor rotation directions. An external braking resistor can be connected for long-term braking and operation with high-inertial loads.

The controller BLD-50 provides the function to control an external electromagnetic brake of the motor.

BLD-50
20 Items

Data sheet

Voltage
12 - 48 VDC
Control methods
Analog speed control: 0…5 V, -10…10 V, 4…20 mA, PWM
Max. motor current
50 A
Peak motor current
100 A
