LD3-24-10-K3-200-HS2 - linear actuator

€144.60
Tax excluded

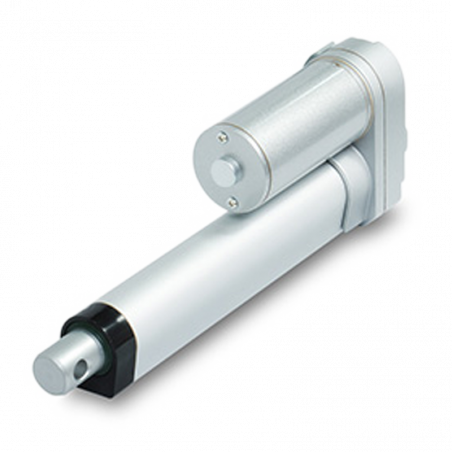

24VDC linear actuator with Hall sensors for position feedback

See detailed information on LD3-24-10-K3 at our main web-site

4 Items
Quantity

The linear actuators LD3 series with gear ratio 1:10 have a compact design, which is suitable for various applications that require limited installation space, such as window or gate opener, adjustable seat tilting and medical devices. The actuator is supplied with built-in Hall sensors.

 - Voltage - 24 VDC
 - Push/pull force - 250 N
 - Rated current - 1.6 A
 - Speed (full load) - 23.5 rpm
 - Speed (no load) - 27.6 rpm
 - Position feedback - 2 Hall sensors
 - Feedback resolution - 3.62 pulses/mm
 - Stroke - 200 mm

Stroke S = 200 mm
Length A = 311 mm
Length B = 511 mm

LD3-24-10-K3-200-HS2
4 Items

Data sheet

Voltage
24 VDC
Push/pull force, N
250
Rated current, A
1.6
Speed (full load), rpm
23.5
Speed (no load), rpm
27.6
Position feedback
2 Hall sensors
Feedback resolution, pulses/mm
3.62
Stroke, mm
200

Download

LD3-12_24-10 brief description

Brief data description for LD3-12-10-K3 / LD3-24-10-K3

Download (2.06MB)

LD3-12_24-10 installation manual

Installation and connection manual for LD3-12-10-K3 / LD3-24-10-K3

Download (4.01MB)
